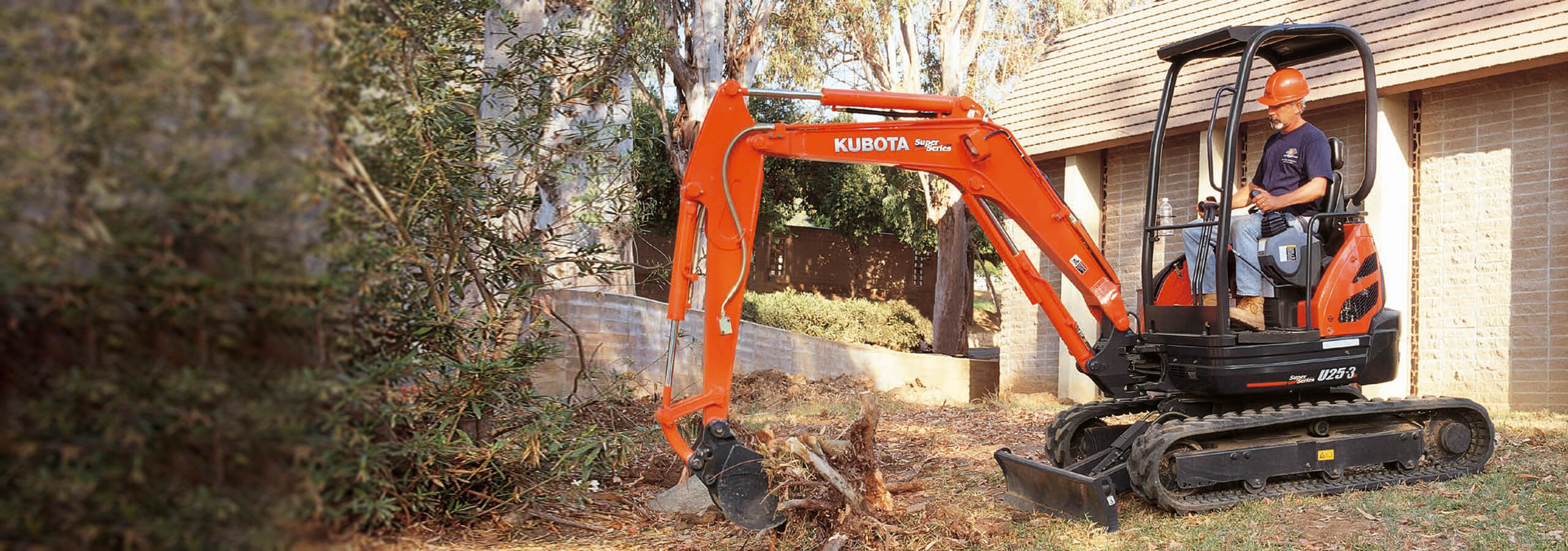

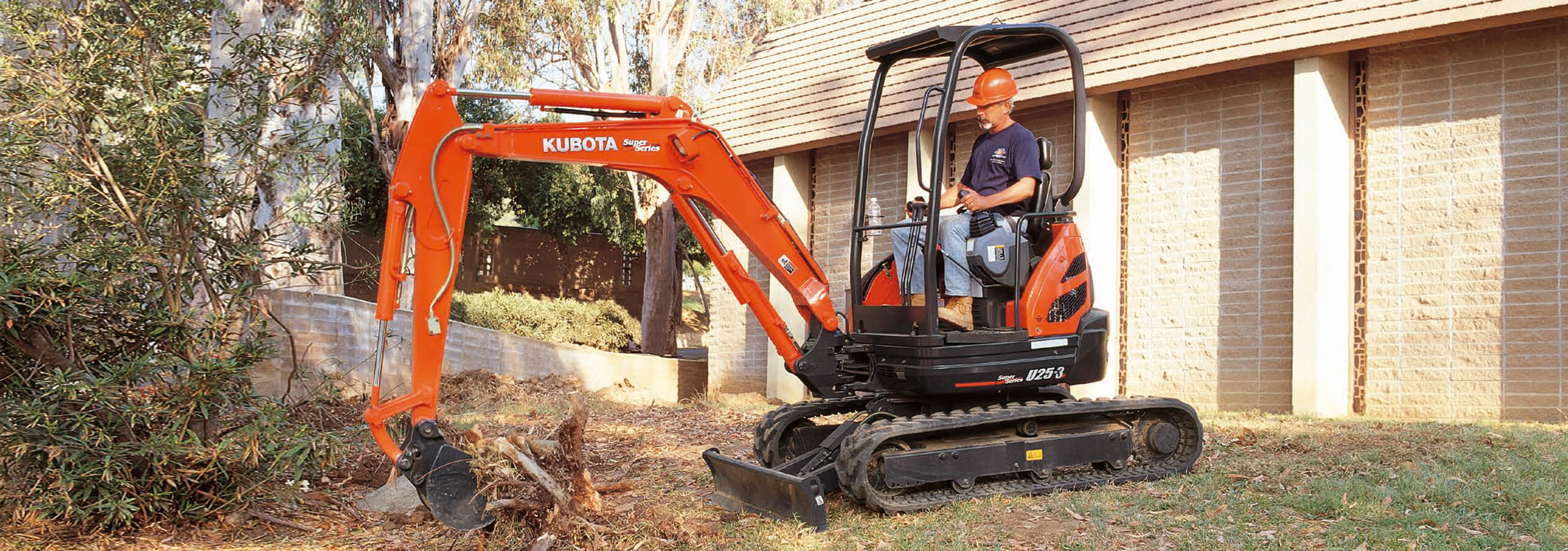

Compact, versatile and powerful, the Kubota U25-3S excavator is ideal for those working in congested worksites. Built to last, the Kubota U25-3S is powered by a reliable Kubota 20.9HP engine, that easily moves in and out of tight spaces with ease. Offering superior comfort, the U25-3S is packed with site. Zero-tail swing keeps the tail within the width of the tracks, so you can turn the house throughout its 360-degree turning radius without worrying about what is to the side or behind you. Zero-tail swing also ensures excellent balance, stability and fast operation, making the U25-3S ideal for jobs in congested urban areas.
Product Features
Kubota’s U25-3S compact excavator features start with zero tail swing, includes strong bucket breakout force, and an advanced digital information panel, you know this excavator has what it takes to do the job. When larger machines won’t fit, the U25-3S can get in, get the job done, and get back out again with superior speed and maximum efficiency.
Engine
Powered by a Kubota 20.9HP engine, for powerful performance and agility to get in and out of the tightest spaces with ease. The U25-3S diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency, and complies with the EPA’s 2013 Tier IV emissions regulations.
Comfort
Deluxe interior with spacious flat foot space to enhance comfort with more leg room for the operator. New user friendly digital panel positioned for better visibility and convenience at your fingertips featuring an easy one touch button operation. Suspension seat designed for better fit and operator comfort to minimise fatigue for long hours of work.
Hydraulics
A quick flip of a lever lets you switch operating patterns from ISO to SAE or vice versa. Located above the boom, the boom cylinder remains safe from damage during breaker or dumping operations. The cylinder design features a larger diameter rod and increased hydraulic pressure for greater lifting power and optimum front attachment speeds. Designed to accommodate a variety of attachments, such as breakers and augers, the U25-3S’s auxiliary hydraulic system consists of port pipes on the arm, bi-directional auxiliary hydraulic controls, and a control value. The auxiliary hydraulic connections are located within easy reach and incorporate short hoses that are less likely to become tangled or damaged.
Front Bush Pins
Pin bushings are installed at all of the pivot points along the swing bracket, boom, arm, and bucket. Pin type bushings not only last longer, they are easier to replace when necessary.
Breakout Force
The U25-3S offers a powerful breakout force: 2,320 kg with the dedicated bucket and quick coupler. That’s more than enough to keep the U25-3S working efficiently even under the heaviest loads on the toughest excavating jobs.
Versatility
Powerful and responsive, the U25-3S’s front working group provides superior lifting capacity for digging, lifting, and loading. Even when working to the side, using hydraulic attachments, or lifting heavy objects, the U25-3S remains supremely stable, thanks to its innovative counter balancing technology, long tumbler distance, and Double Outer Flanged Lower Track Rollers.
Specifications
Name |
U25-3S |
Engine Type |
Tier 4 Compliant |
Fuel Type |
Diesel |
Cylinders |
3 |
Engine Model |
Kubota D1105-E3 |
Engine Net |
19.8 HP |
Engine Gross |
20.9 HP |
Displacement |
1,123 cc |
Rated speed |
2,400 rpm |
Name |
U25-3S |
Max. Digging Height |
4,530 mm |
Max. Dumping Height |
3,210 mm |
Max. Digging Depth |
2,810 mm |
Max. Vertical Digging Depth |
1,960 mm |
Max. Digging Radius At Ground |
4,670 mm |
Max. Digging Radius |
4,770 mm |
Min. Turning Radius – w/o Swing |
1,900 mm |
Min. Turning Radius – Swing |
1,420 mm |
Min. Tail Turning Radius |
760 mm |
Name |
U25-3S |
Max. Traction Force |
3,060 kgf |
Tumbler Distance |
1,560 mm |
Crawler Length |
2,000 mm |
Shoe Width |
300 mm |
Ground Contact Pressure (Per cm2) |
0.23 kgf |
Name |
U25-3S |
Hydraulic Pump Capacity |
28.8 Piston x2 / 19.2 Gear x 1 l/min |
Aux Hydraulic Flow – AUX1 |
48 l/min |
Max. Breakout Force – Bucket |
2,320 kgf |
Max. Breakout Force – Arm |
1,245 kgf |
Name |
U25-3S |
Swing System |
Zero Tail Swing |
Unit Swing Speed |
9.8 rpm |
Boom Swing Angle Left |
75 degree |
Boom Swing Angle Right |
55 degree |
Name |
U25-3S |
Low |
2.5 km/h |
High |
4.5 km/h |
Name |
U25-3S |
Length |
4,150 mm |
Width |
1,500 mm |
Height – Canopy |
2,420 mm |
Min. Ground Clearance |
285 mm |
Operating Weight – Canopy |
2,545 kg |
Name |
U25-3S |
Max. Blade Width |
1,500 mm |
Blade Height |
300 mm |
Max. Lift Above Ground |
360 mm |
Max. Drop Below Ground |
320 mm |
Name |
U25-3S |
Fuel Reservoir |
28 l |
Hydraulic Oil Reservoir |
22 l |
Hydraulic Oil System |
37 l |
Engine Oil |
4.4 l |
Name |
U25-3S |
Operator Station |
Canopy |
